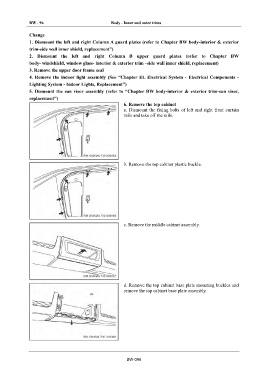

BW - 96 Body - Inner and outer trims

Change
1. Dismount the left and right Column A guard plates (refer to Chapter BW body-interior & exterior
trim-side wall inner shield, replacement”)
2. Dismount the left and right Column B upper guard plates (refer to Chapter BW
body- windshield, window glass- interior & exterior trim –side wall inner shield, replacement)
3. Remove the upper door frame seal
4. Remove the indoor light assembly (See “Chapter EL Electrical System - Electrical Components -
Lighting System - Indoor Lights, Replacement”)
5. Dismount the sun visor assembly (refer to “Chapter BW body-interior & exterior trim-sun visor,
replacement”)
6. Remove the top cabinet
a. Dismount the fixing bolts of left and right front curtain
rails and take off the rails.

b. Remove the top cabinet plastic buckle.

c. Remove the middle cabinet assembly.

d. Remove the top cabinet base plate mounting buckles and
remove the top cabinet base plate assembly.

BW-096
