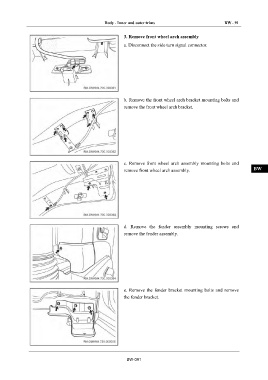

Body - Inner and outer trims BW - 91
3. Remove front wheel arch assembly IN
a. Disconnect the side turn signal connector.
DI
EG
TR
b. Remove the front wheel arch bracket mounting bolts and
AX
remove the front wheel arch bracket.
FR
ST
BR
c. Remove front wheel arch assembly mounting bolts and
remove front wheel arch assembly. BW
EL
d. Remove the fender assembly mounting screws and
remove the fender assembly.
e. Remove the fender bracket mounting bolts and remove
the fender bracket.
BW-091
