Page 1330 - Foton Workshop Manual - Auman EST-M

BW - 92 Body - Inner and outer trims

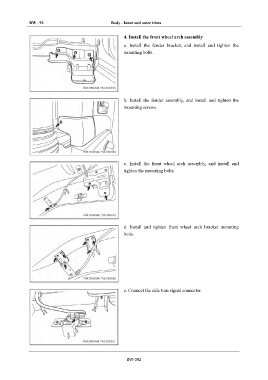

4. Install the front wheel arch assembly
a. Install the fender bracket, and install and tighten the
mounting bolts.

b. Install the fender assembly, and install and tighten the
mounting screws.

c. Install the front wheel arch assembly, and install and
tighten the mounting bolts.

d. Install and tighten front wheel arch bracket mounting
bolts.

e. Connect the side turn signal connector.

BW-092
