Page 1332 - Foton Workshop Manual - Auman EST-M

BW - 94 Body - Inner and outer trims

Roof guard

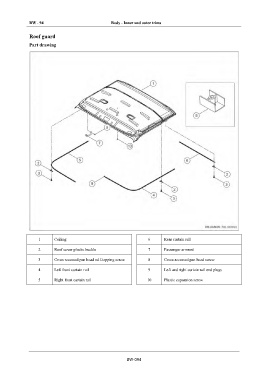

Part drawing

1 Ceiling 6 Rear curtain rail

2 Roof cover plastic buckle 7 Passenger armrest

3 Cross recessed pan head self-tapping screw 8 Cross-recessed pan head screw
4 Left front curtain rail 9 Left and right curtain rail end plugs

5 Right front curtain rail 10 Plastic expansion screw

BW-094
