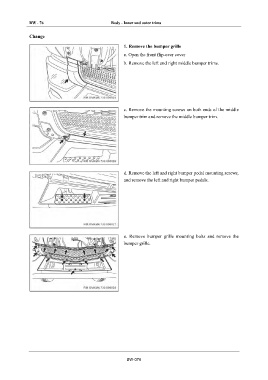

BW - 76                             Body - Inner and outer trims


              Change
                                                        1. Remove the bumper grille

                                                        a. Open the front flip-over cover
                                                        b. Remove the left and right middle bumper trims.











                                                        c. Remove the mounting screws on both ends of the middle
                                                        bumper trim and remove the middle bumper trim.













                                                        d. Remove the left and right bumper pedal mounting screws,
                                                        and remove the left and right bumper pedals.














                                                        e. Remove  bumper  grille  mounting  bolts  and  remove  the
                                                        bumper grille.






























                                                         BW-076
