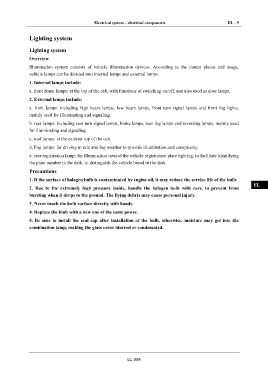

Electrical system – electrical components EL - 9

IN
Lighting system

Lighting system DI

Overview
Illumination system consists of vehicle illumination devices. According to the mount places and usage, EG
vehicle lamps can be divided into internal lamps and external lamps.
1. Internal lamps include:
TR
a. front dome lamps: at the top of the cab, with functions of switching on/off, and also used as door lamps.
2. External lamps include:
AX
a. front lamps: including high beam lamps, low beam lamps, front turn signal lamps and front fog lights,
mainly used for illuminating and signaling.
FR
b. rear lamps: including rear turn signal lamps, brake lamps, rear fog lamps and reversing lamps, mainly used
for illuminating and signaling.
ST
c. roof lamps: at the exterior top of the cab.
d. Fog lamps: for driving in rain and fog weather to provide illumination and conspicuity.
BR
e. rear registration lamp: for illumination toward the vehicle registration plate lighting, to facilitate identifying
the plate number in the dark. to distinguish the vehicle brand in the dark.
BW
Precautions
1. If the surface of halogen bulb is contaminated by engine oil, it may reduce the service life of the bulb.
EL
2. Due to the extremely high pressure inside, handle the halogen bulb with care, to prevent from
bursting when it drops to the ground. The flying debris may cause personal injury.
3. Never touch the bulb surface directly with hands.
4. Replace the blub with a new one of the same power.

5. Be sure to install the seal cap after installation of the bulb, otherwise, moisture may get into the
combination lamp, making the glass cover blurred or condensated.

EL-009
