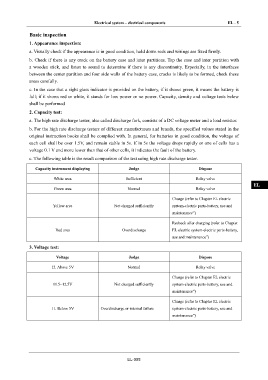

Electrical system – electrical components EL - 5

Basic inspection IN

1. Appearance inspection:
a. Visually check if the appearance is in good condition, hold down rods and wirings are fixed firmly. DI
b. Check if there is any crack on the battery case and inter partitions. Tap the case and inter partition with
a wooden stick, and listen to sound to determine if there is any discontinuity. Especially, in the interfaces EG
between the center partition and four side walls of the battery case, cracks is likely to be formed, check these

areas carefully.
TR
c. In the case that a sight glass indicator is provided on the battery, if it shows green, it means the battery is

full; if it shows red or white, it stands for low power or no power. Capacity, density and voltage tests below
AX
shall be performed

2. Capacity test:
FR
a. The high rate discharge tester, also called discharge fork, consists of a DC voltage meter and a load resistor.

b. For the high rate discharge testers of different manufacturers and brands, the specified values stated in the
original instruction books shall be complied with. In general, for batteries in good condition, the voltage of ST
each cell shall be over 1.5V, and remain stable in 5s. If in 5s the voltage drops rapidly or one of cells has a
voltage 0.1 V and more lower than that of other cells, it indicates the fault of the battery. BR
c. The following table is the result comparison of the test using high rate discharge tester.

Capacity instrument displaying Judge Dispose BW

White area Sufficient Relay valve
EL
Green area Normal Relay valve

Charge (refer to Chapter EL electric

Yellow area Not charged sufficiently system-electric parts-battery, use and

maintenance”)

Recheck after charging (refer to Chapter

Red area Overdischarge EL electric system-electric parts-battery,

use and maintenance”)

3. Voltage test:

Voltage Judge Dispose

12. Above 5V Normal Relay valve
Charge (refer to Chapter EL electric
11.5~12.5V Not charged sufficiently system-electric parts-battery, use and
maintenance”)

Charge (refer to Chapter EL electric
11. Below 5V Overdischarge or internal failure system-electric parts-battery, use and
maintenance”)

EL-005
