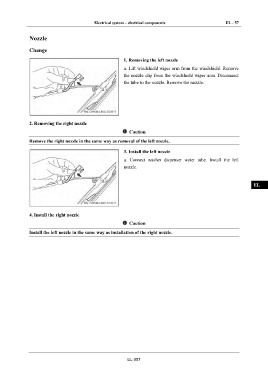

Electrical system – electrical components EL - 57
IN
Nozzle
Change DI
1. Removing the left nozzle
a. Lift windshield wiper arm from the windshield. Remove EG
the nozzle clip from the windshield wiper arm. Disconnect
the tube to the nozzle. Remove the nozzle.
TR
AX
FR
2. Removing the right nozzle
Caution
ST
Remove the right nozzle in the same way as removal of the left nozzle.
3. Install the left nozzle BR
a. Connect washer dispenser water tube. Install the left
nozzle. BW
EL
4. Install the right nozzle
Caution
Install the left nozzle in the same way as installation of the right nozzle.
EL-057
