EL - 62 Electrical system – electrical components
IN

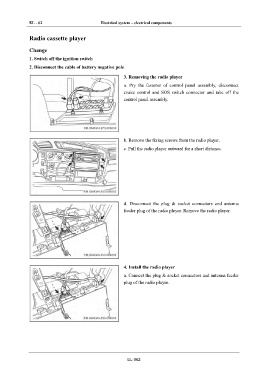

Radio cassette player
DI Change
1. Switch off the ignition switch
EG 2. Disconnect the cable of battery negative pole
3. Removing the radio player
TR a. Pry the fastener of control panel assembly, disconnect
cruise control and SOS switch connector and take off the
control panel assembly.
AX
FR
ST
b. Remove the fixing screws from the radio player.
c. Pull the radio player outward for a short distance.
BR
BW
EL
d. Disconnect the plug & socket connectors and antenna
feeder plug of the radio player. Remove the radio player.
4. Install the radio player
a. Connect the plug & socket connectors and antenna feeder
plug of the radio player.
EL-062
