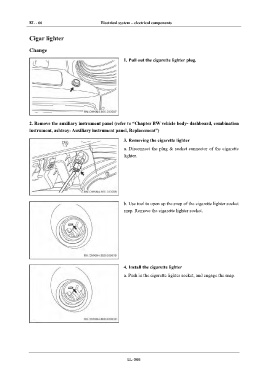

EL - 66 Electrical system – electrical components
IN
Cigar lighter
DI Change
1. Pull out the cigarette lighter plug.
EG
TR
AX
FR
2. Remove the auxiliary instrument panel (refer to “Chapter BW vehicle body- dashboard, combination
instrument, ashtray- Auxiliary instrument panel, Replacement”)
ST
3. Removing the cigarette lighter
a. Disconnect the plug & socket connector of the cigarette
BR
lighter.
BW
EL
b. Use tool to open up the snap of the cigarette lighter socket
snap. Remove the cigarette lighter socket.
4. Install the cigarette lighter
a. Push in the cigarette lighter socket, and engage the snap.
EL-066
