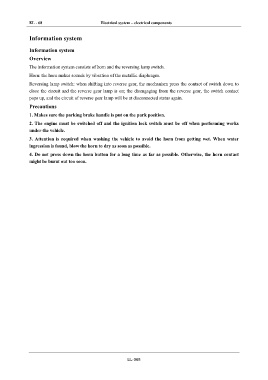

EL - 68 Electrical system – electrical components
IN
Information system
DI Information system
Overview
EG The information system consists of horn and the reversing lamp switch.
Horn: the horn makes sounds by vibration of the metallic diaphragm.
TR Reversing lamp switch: when shifting into reverse gear, the mechanism press the contact of switch down to
close the circuit and the reverse gear lamp is on; the disengaging from the reverse gear, the switch contact
pops up, and the circuit of reverse gear lamp will be at disconnected status again.
AX
Precautions
1. Makes sure the parking brake handle is put on the park position.
FR
2. The engine must be switched off and the ignition lock switch must be off when performing works
under the vehicle.
ST
3. Attention is required when washing the vehicle to avoid the horn from getting wet. When water
ingression is found, blow the horn to dry as soon as possible.
BR
4. Do not press down the horn button for a long time as far as possible. Otherwise, the horn contact
might be burnt out too soon.
BW
EL
EL-068
