Page 1498 - Foton Workshop Manual - Auman EST-M
P. 1498

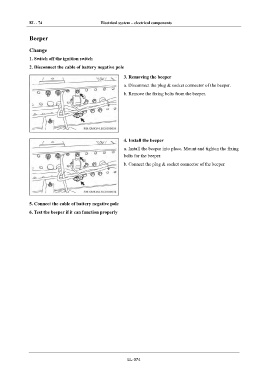

EL - 74 Electrical system – electrical components
IN
Beeper
DI Change
1. Switch off the ignition switch
EG 2. Disconnect the cable of battery negative pole
3. Removing the beeper
TR a. Disconnect the plug & socket connector of the beeper.
b. Remove the fixing bolts from the beeper.
AX
FR
ST
4. Install the beeper
a. Install the beeper into place. Mount and tighten the fixing
BR
bolts for the beeper.
b. Connect the plug & socket connector of the beeper.
BW
EL
5. Connect the cable of battery negative pole
6. Test the beeper if it can function properly
EL-074
