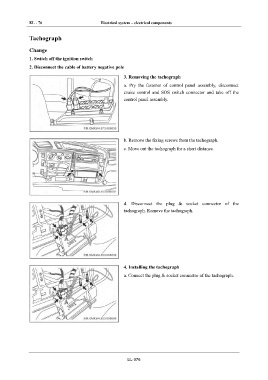

EL - 76 Electrical system – electrical components
IN
Tachograph
DI Change
1. Switch off the ignition switch
EG 2. Disconnect the cable of battery negative pole
3. Removing the tachograph
TR a. Pry the fastener of control panel assembly, disconnect
cruise control and SOS switch connector and take off the
control panel assembly.
AX
FR
ST
b. Remove the fixing screws from the tachograph.
c. Move out the tachograph for a short distance.
BR
BW
EL
d. Disconnect the plug & socket connector of the
tachograph. Remove the tachograph.
4. Installing the tachograph
a. Connect the plug & socket connector of the tachograph.
EL-076
