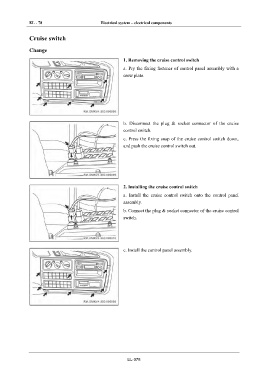

Page 1502 - Foton Workshop Manual - Auman EST-M
P. 1502
EL - 78 Electrical system – electrical components
IN
Cruise switch
DI Change
1. Removing the cruise control switch
EG a. Pry the fixing fastener of control panel assembly with a
crow plate.
TR
AX
FR
b. Disconnect the plug & socket connector of the cruise
control switch.
ST
c. Press the fixing snap of the cruise control switch down,
and push the cruise control switch out.
BR
BW
EL 2. Installing the cruise control switch
a. Install the cruise control switch onto the control panel
assembly.
b. Connect the plug & socket connector of the cruise control
switch.
c. Install the control panel assembly.
EL-078
