Electrical system – electrical components EL - 83

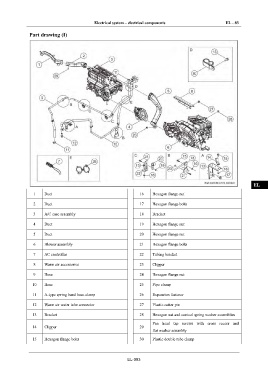

Part drawing (I) IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Duct 16 Hexagon flange nut
2 Duct 17 Hexagon flange bolts
3 A/C case assembly 18 Bracket
4 Duct 19 Hexagon flange nut
5 Duct 20 Hexagon flange nut
6 Blower assembly 21 Hexagon flange bolts
7 AC controller 22 Tubing bracket
8 Warm air accessories 23 Clipper
9 Hose 24 Hexagon flange nut
10 Hose 25 Pipe clamp
11 A-type spring band hose clamp 26 Expansion fastener
12 Warm air water tube connector 27 Plastic cotter pin
13 Bracket 28 Hexagon nut and conical spring washer assemblies
Pan head tap screws with cross recess and
14 Clipper 29
flat washer assembly
15 Hexagon flange bolts 30 Plastic double tube clamp
