Electrical system – electrical components EL - 85

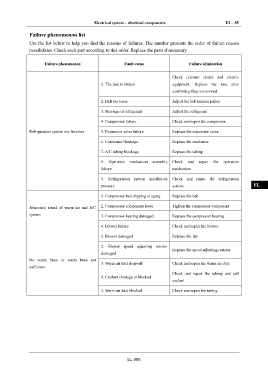

Failure phenomenon list IN

Use the list below to help you find the reasons of failures. The number presents the order of failure reason
possibilities. Check each part according to this order. Replace the parts if necessary DI

Failure phenomenon Fault cause Failure elimination
EG

Check relevant circuit and electric
1. The fuse is broken equipment. Replace the fuse after TR
confirming they are normal

2. Belt too loose Adjust the belt tension pulley AX
3. Shortage of refrigerant Adjust the refrigerant
FR
4. Compressor failure Check and repair the compressor

Refrigeration system not function 5. Expansion valve failure Replace the expansion valve
ST
6. Condenser blockage Replace the condenser

7. A/C tubing blockage Replace the tubing BR

8. Operation mechanism assembly Check and repair the operation
failure mechanism BW

9. Refrigeration system insufficient Check and repair the refrigeration
pressure system EL

1. Compressor belt slipping or aging Replace the belt

Abnormal sound of warm air and A/C 2. Compressor component loose Tighten the compressor component

system
3. Compressor bearing damaged Replace the compressor bearing

4. Blower failure Check and repair the blower

1. Blower damaged Replace the fan

2. Blower speed adjusting resistor
Replace the speed adjusting resistor
damaged
No warm braw or warm braw not
3. Warm air duct drop-off Check and repair the warm air duct
sufficient
Check and repair the tubing and add
4. Coolant shortage or blocked
coolant

5. Warm air duct blocked Check and repair the tubing

EL-085
