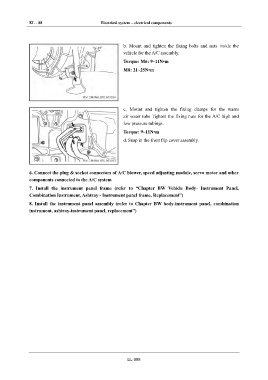

EL - 88 Electrical system – electrical components
IN
b. Mount and tighten the fixing bolts and nuts inside the
DI vehicle for the A/C assembly.
Torque: M6: 9~11N•m
EG M8: 21~25N•m
TR
AX
c. Mount and tighten the fixing clamps for the warm
air water tube Tighten the fixing nuts for the A/C high and
FR
low pressure tubings.
Torque: 9~11N•m
ST
d. Snap in the front flip cover assembly.
BR
BW
6. Connect the plug & socket connectors of A/C blower, speed adjusting module, servo motor and other
components connected to the A/C system
EL
7. Install the instrument panel frame (refer to “Chapter BW Vehicle Body- Instrument Panel,
Combination Instrument, Ashtray - Instrument panel frame, Replacement”)
8. Install the instrument panel assembly (refer to Chapter BW body-instrument panel, combination
instrument, ashtray-instrument panel, replacement”)
EL-088
