EL - 84 Electrical system – electrical components

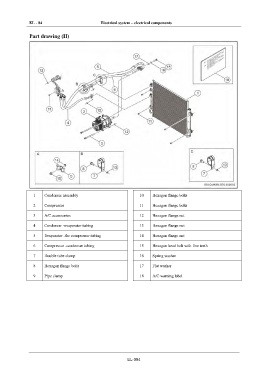

IN Part drawing (II)
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Condenser assembly 10 Hexagon flange bolts
2 Compressor 11 Hexagon flange bolts
3 A/C accessories 12 Hexagon flange nut
4 Condenser -evaporator tubing 13 Hexagon flange nut
5 Evaporator -the compressor tubing 14 Hexagon flange nut
6 Compressor -condenser tubing 15 Hexagon head bolt with fine teeth
7 Double tube clamp 16 Spring washer
8 Hexagon flange bolts 17 Flat washer
9 Pipe clamp 18 A/C warning label
EL-084
