EL - 86 Electrical system – electrical components

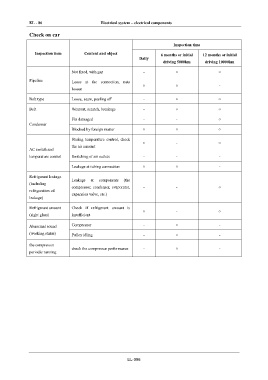

IN Check on car

Inspection time
DI Inspection item Content and object
6 months or initial 12 months or initial
Daily
driving 5000km driving 10000km
EG
Not fixed, with gap - ○ ○

Pipeline Loose at the connection, nuts
TR ○ ○ -
loosen

Bolt type Loose, seam, peeling off - ○ ○
AX
Belt Wearout, scratch, breakage - ○ ○
FR Fin damaged - - ○
Condenser

Blocked by foreign matter ○ ○ ○
ST
Staring temperature control, check
○ - ○
the air amount
AC switch and
BR
temperature control Switching of air outlets - - -

Leakage at tubing connection ○ ○ -
BW
Refrigerant leakage
Leakage at components (the
EL (including compressor, condenser, evaporator, - - ○
refrigeration oil
expansion valve, etc.)
leakage)

Refrigerant amount Check if refrigerant amount is
○ - ○
(sight glass) insufficient

Abnormal sound Compressor - ○ -

(working status) Pulley idling - ○ -
the compressor
check the compressor performance - ○ -
periodic running

EL-086
