Electrical system – electrical components EL - 75
IN

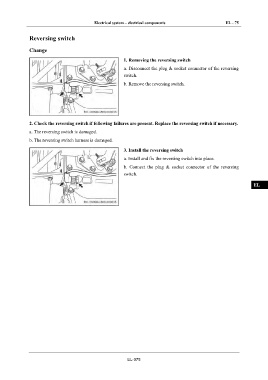

Reversing switch
Change DI
1. Removing the reversing switch
a. Disconnect the plug & socket connector of the reversing EG
switch.
b. Remove the reversing switch. TR
AX
FR
2. Check the reversing switch if following failures are present. Replace the reversing switch if necessary.
a. The reversing switch is damaged.
ST
b. The reversing switch harness is damaged.
3. Install the reversing switch BR
a. Install and fix the reversing switch into place.
b. Connect the plug & socket connector of the reversing BW
switch.
EL
EL-075
