P. 1614

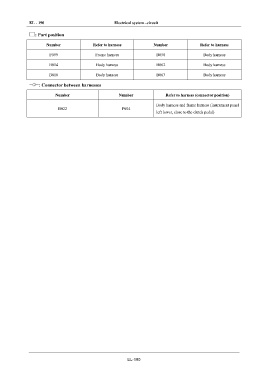

EL - 190 Electrical system –circuit
IN : Part position
Number Refer to harness Number Refer to harness
DI
F099 Frame harness B058 Body harness
B014 Body harness B062 Body harness
EG
B018 Body harness B063 Body harness
TR : Connector between harnesses
Number Number Refer to harness (connector position)
AX
Body harness and frame harness (instrument panel
B022 F004 left lower, close to the clutch pedal)
FR
ST
BR
BW
EL
EL-190
