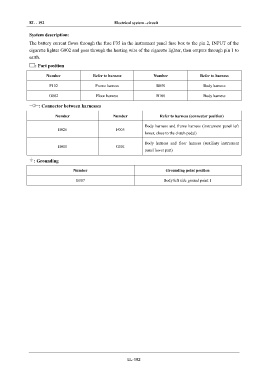

EL - 192 Electrical system –circuit
IN System description:
The battery current flows through the fuse F35 in the instrument panel fuse box to the pin 2, INPUT of the
DI cigarette lighter G002 and goes through the heating wire of the cigarette lighter, then outputs through pin 1 to
earth.
: Part position
EG
Number Refer to harness Number Refer to harness
TR F102 Frame harness B050 Body harness
G002 Floor harness B100 Body harness
AX
: Connector between harnesses
Number Number Refer to harness (connector position)
FR
Body harness and frame harness (instrument panel left
B026 F005
lower, close to the clutch pedal)
ST
Body harness and floor harness (auxiliary instrument
B010 G001
panel lower part)
BR
: Grounding
BW Number Grounding point position
B007 Body left side ground point 1
EL
EL-192
