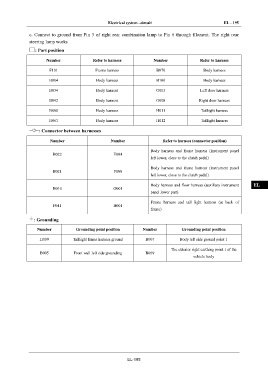

Electrical system –circuit EL - 195

c. Connect to ground from Pin 3 of right rear combination lamp to Pin 6 through filament. The right rear IN
steering lamp works

: Part position DI
Number Refer to harness Number Refer to harness
EG
F101 Frame harness B070 Body harness

B004 Body harness B100 Body harness
TR
B034 Body harness G005 Left door harness

B042 Body harness G008 Right door harness AX

B060 Body harness H011 Taillight harness
FR
B061 Body harness H012 Taillight harness

: Connector between harnesses
ST
Number Number Refer to harness (connector position)

Body harness and frame harness (instrument panel BR
B022 F004
left lower, close to the clutch pedal)

Body harness and frame harness (instrument panel BW
B021 F008
left lower, close to the clutch pedal)

Body harness and floor harness (auxiliary instrument EL
B010 G001
panel lower part)

Frame harness and tail light harness (at back of
F041 H001
frame)
: Grounding

Number Grounding point position Number Grounding point position

H009 Taillight frame harness ground B007 Body left side ground point 1

The exterior right earthing point 1 of the
B005 Front wall left side grounding B069
vehicle body

EL-195
