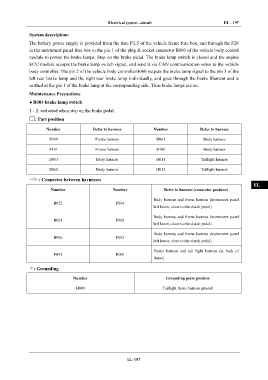

Page 1621 - Foton Workshop Manual - Auman EST-M

Electrical system –circuit EL - 197

System description: IN

The battery power supply is provided from the fuse F\L5 of the vehicle frame fuse box, and through the F28
in the instrument panel fuse box to the pin 1 of the plug & socket connector B060 of the vehicle body control DI
module to power the brake lamps. Step on the brake pedal. The brake lamp switch is closed and the engine

ECU module accepts the brake lamp switch signal, and send it via CAN communication wires to the vehicle
EG
body controller. The pin 2 of the vehicle body controllerB060 outputs the brake lamp signal to the pin 3 of the

left rear brake lamp and the right rear brake lamp individually, and goes through the brake filament and is
earthed at the pin 1 of the brake lamp at the corresponding side. Then brake lamps are on. TR

Maintenance Precautions
● B003 brake lamp switch AX
1 - 2: activated when step on the brake pedal.
: Part position FR

Number Refer to harness Number Refer to harness
ST
F099 Frame harness B061 Body harness

F101 Frame harness B100 Body harness
BR
B003 Body harness H011 Taillight harness
B060 Body harness H012 Taillight harness BW

: Connector between harnesses
EL
Number Number Refer to harness (connector position)

Body harness and frame harness (instrument panel
B022 F004
left lower, close to the clutch pedal)

Body harness and frame harness (instrument panel
B021 F008
left lower, close to the clutch pedal)

Body harness and frame harness (instrument panel
B026 F005
left lower, close to the clutch pedal)

Frame harness and tail light harness (at back of
F041 H001
frame)

: Grounding

Number Grounding point position

H009 Taillight frame harness ground

EL-197
