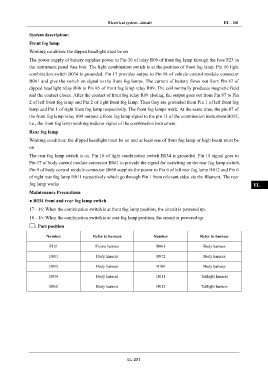

Electrical system –circuit EL - 201

System description: IN

Front fog lamp
Working condition: the dipped headlight must be on DI
The power supply of battery supplies power to Pin 30 of relay R09 of front fog lamp through the fuse F23 in
the instrument panel fuse box. The light combination switch is at the position of front fog lamp. Pin 16 light EG
combination switch B034 is grounded. Pin 17 provides output to Pin 18 of vehicle control module connector

B061 and give the switch on signal to the front fog lamps. The current of battery flows out from Pin 87 of
TR
dipped headlight relay R08 to Pin 85 of front fog lamp relay R09. The coil normally produces magnetic field

and the contact closes. After the contact of front fog relay R09 closing, the output goes out from Pin 87 to Pin
2 of left front fog lamp and Pin 2 of right front fog lamp. Then they are grounded from Pin 1 of left front fog AX
lamp and Pin 1 of right front fog lamp respectively. The front fog lamps work. At the same time, the pin 87 of
the front fog lamp relay R09 outputs a front fog lamp signal to the pin 11 of the combination instrument B015,
FR
i.e., the front fog lamp working indictor signal of the combination instrument.

Rear fog lamp
ST
Working condition: the dipped headlight must be on and at least one of front fog lamp or high beam must be

on
BR
The rear fog lamp switch is on. Pin 16 of light combination switch B034 is grounded. Pin 18 signal goes to

Pin 17 of body control module connector B061 to provide the signal for switching on the rear fog lamp switch.
Pin 9 of body control module connector B060 supplies the power to Pin 6 of left rear fog lamp H012 and Pin 6 BW
of right rear fog lamp H011 respectively which go through Pin 1 from relevant sides via the filament. The rear
fog lamp works EL

Maintenance Precautions
● B034 front and rear fog lamp switch

17 - 16: When the combination switch is at front fog lamp position, the circuit is powered up.
18 - 16: When the combination switch is at rear fog lamp position, the circuit is powered up.
: Part position

Number Refer to harness Number Refer to harness

F101 Frame harness B061 Body harness

B001 Body harness B072 Body harness

B015 Body harness B100 Body harness

B034 Body harness H011 Taillight harness

B060 Body harness H012 Taillight harness

EL-201
