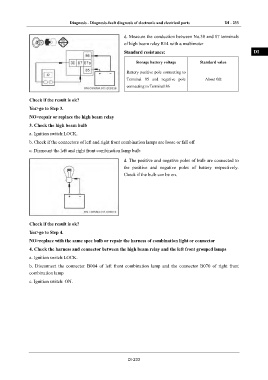

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 233
IN
d. Measure the conduction between No.30 and 87 terminals
of high beam relay R14 with a multimeter
Standard resistance: DI
Storage battery voltage Standard value
EG
Battery positive pole connecting to
Terminal 85 and negative pole About 0Ω
TR
connecting to Terminal 86
Check if the result is ok? AX
Yes>go to Step 3.
NO>repair or replace the high beam relay FR
3. Check the high beam bulb
a. Ignition switch:LOCK. ST
b. Check if the connectors of left and right front combination lamps are loose or fall off
c. Dismount the left and right front combination lamp bulb BR
d. The positive and negative poles of bulb are connected to
the positive and negative poles of battery respectively. BW
Check if the bulb can be on.
EL
Check if the result is ok?
Yes>go to Step 4.
NO>replace with the same spec bulb or repair the harness of combination light or connector
4. Check the harness and connector between the high beam relay and the left front grouped lamps
a. Ignition switch:LOCK.
b. Disconnect the connector B004 of left front combination lamp and the connector B070 of right front
combination lamp
c. Ignition switch: ON.
DI-233
