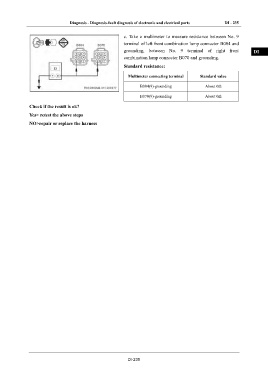

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 235
IN
c. Take a multimeter to measure resistance between No. 9
terminal of left front combination lamp connector B004 and
grounding, between No. 9 terminal of right front DI
combination lamp connector B070 and grounding.
Standard resistance:
EG
Multimeter connecting terminal Standard value
TR
B004(9)-grounding About 0Ω
B070(9)-grounding About 0Ω
AX
Check if the result is ok?
Yes> retest the above steps
FR
NO>repair or replace the harness
