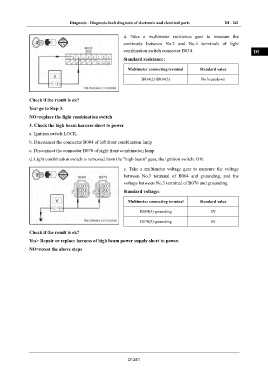

Page 295 - Foton Workshop Manual - Auman EST-M

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 241

IN
d. Take a multimeter resistance gear to measure the
continuity between No.2 and No.4 terminals of light
combination switch connector B034. DI
Standard resistance:

Multimeter connecting terminal Standard value EG

B034(2)-B034(3) No breakdown
TR

Check if the result is ok? AX
Yes>go to Step 3.
NO>replace the light combination switch FR

3. Check the high beam harness short to power
a. Ignition switch:LOCK. ST

b. Disconnect the connector B004 of left front combination lamp
c. Disconnect the connector B070 of right front combination lamp BR

d. Light combination switch is removed from the "high beam" gear, the ignition switch: ON.
e. Take a multimeter voltage gear to measure the voltage BW
between No.3 terminal of B004 and grounding, and the
voltage between No.3 terminal of B070 and grounding.
EL
Standard voltage:

Multimeter connecting terminal Standard value

B004(3)-grounding 0V

B070(3)-grounding 0V

Check if the result is ok?

Yes> Repair or replace harness of high beam power supply short to power.

NO>retest the above steps

DI-241
