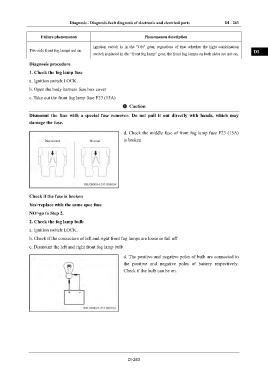

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 243

Failure phenomenon Phenomenon description IN

Ignition switch is in the "ON" gear, regardless of that whether the light combination
Two side front fog lamps not on DI
switch is placed in the "front fog lamp" gear, the front fog lamps on both sides are not on.

Diagnosis procedure
EG
1. Check the fog lamp fuse

a. Ignition switch:LOCK.
TR
b. Open the body harness fuse box cover

c. Take out the front fog lamp fuse F23 (15A)
AX
Caution

Dismount the fuse with a special fuse remover. Do not pull it out directly with hands, which may
FR
damage the fuse.

d. Check the middle fuse of front fog lamp fuse F23 (15A)
ST
is broken
Disconnect Normal

BR

BW

EL
Check if the fuse is broken

Yes>replace with the same spec fuse

NO>go to Step 2.

2. Check the fog lamp bulb

a. Ignition switch:LOCK.

b. Check if the connectors of left and right front fog lamps are loose or fall off

c. Dismount the left and right front fog lamp bulb

d. The positive and negative poles of bulb are connected to

the positive and negative poles of battery respectively.

Check if the bulb can be on.

DI-243
