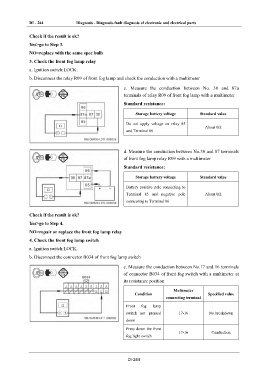

DI - 244 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts

Check if the result is ok?
Yes>go to Step 3.

NO>replace with the same spec bulb
3. Check the front fog lamp relay

a. Ignition switch:LOCK.
b. Disconnect the relay R09 of front fog lamp and check the conduction with a multimeter

c. Measure the conduction between No. 30 and 87a
terminals of relay R09 of front fog lamp with a multimeter
Standard resistance:

Storage battery voltage Standard value

Do not apply voltage on relay 85
About 0Ω
and Terminal 86

d. Measure the conduction between No.30 and 87 terminals
of front fog lamp relay R09 with a multimeter
Standard resistance:

Storage battery voltage Standard value

Battery positive pole connecting to
Terminal 85 and negative pole About 0Ω
connecting to Terminal 86

Check if the result is ok?

Yes>go to Step 4.
NO>repair or replace the front fog lamp relay

4. Check the front fog lamp switch
a. Ignition switch:LOCK.

b. Disconnect the connector B034 of front fog lamp switch
c. Measure the conduction between No.17 and 16 terminals
of connector B034 of front fog switch with a multimeter at
its resistance position

Multimeter
Condition Specified value
connecting terminal
Front fog lamp
switch not pressed 17-16 No breakdown
down

Press down the front
17-16 Conduction
fog light switch
