Engine section – Engine (Cummins ISF3.8)                  EG - 217

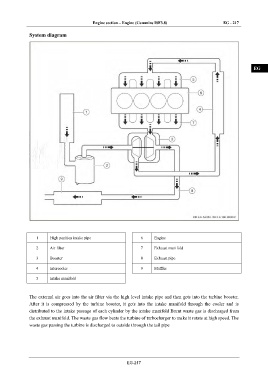

              System diagram                                                                                      IN

                                                                                                                  DI


                                                                                                                  EG


                                                                                                                  TR


                                                                                                                  AX

                                                                                                                  FR


                                                                                                                  ST


                                                                                                                  BR

                                                                                                                  BW


                                                                                                                  EL







                 1     High position intake pipe                6    Engine

                 2     Air filter                               7    Exhaust manifold

                 3     Booster                                  8    Exhaust pipe

                 4     Intercooler                              9    Muffler

                 5     Intake manifold



              The external air goes into the air filter via the high level intake pipe and then gets into the turbine booster.

              After  it  is  compressed  by  the  turbine  booster,  it  gets  into  the  intake  manifold  through  the  cooler  and  is
              distributed to the intake passage of each cylinder by the intake manifold Burnt waste gas is discharged from
              the exhaust manifold. The waste gas flow beats the turbine of turbocharger to make it rotate at high speed. The
              waste gas passing the turbine is discharged to outside through the tail pipe





                                                         EG-217
