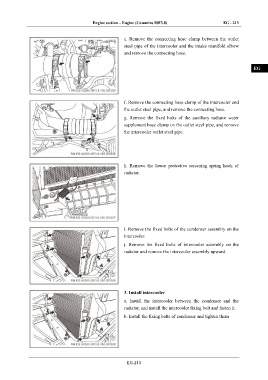

Engine section – Engine (Cummins ISF3.8)                  EG - 213


                                                                                                                  IN
                                                        e.  Remove  the  connecting  hose  clamp  between  the  outlet

                                                        steel pipe of the intercooler and the intake manifold elbow
                                                                                                                  DI
                                                        and remove the connecting hose.


                                                                                                                  EG


                                                                                                                  TR


                                                        f. Remove the connecting hose clamp of the intercooler and   AX
                                                        the outlet steel pipe, and remove the connecting hose.
                                                        g.  Remove  the  fixed  bolts  of  the  auxiliary  radiator  water   FR
                                                        supplement hose clamp on the outlet steel pipe, and remove
                                                        the intercooler outlet steel pipe.
                                                                                                                  ST



                                                                                                                  BR


                                                        h.  Remove  the  lower  protective  screening  spring  hook  of
                                                                                                                  BW
                                                        radiator.


                                                                                                                  EL







                                                        i. Remove the fixed bolts of the condenser assembly on the
                                                        intercooler.
                                                        j.  Remove  the  fixed  bolts  of  intercooler  assembly  on  the
                                                        radiator and remove the intercooler assembly upward.






                                                        3. Install intercooler

                                                        a.  Install  the  intercooler  between  the  condenser  and  the
                                                        radiator, and install the intercooler fixing bolt and fasten it.
                                                        b. Install the fixing bolts of condenser and tighten them






                                                         EG-213
