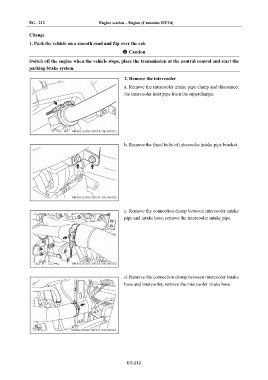

EG - 212                       Engine section – Engine (Cummins ISF3.8)

              Change
              1. Park the vehicle on a smooth road and flip over the cab
                                                           Caution

              Switch off the engine when the vehicle stops, place the transmission at the neutral control and start the
              parking brake system.

                                                        2. Remove the intercooler

                                                        a. Remove the intercooler intake pipe clamp and disconnect
                                                        the intercooler inlet pipe from the supercharger.











                                                        b. Remove the fixed bolts of intercooler intake pipe bracket.














                                                        c. Remove the connection clamp between intercooler intake
                                                        pipe and intake hose, remove the intercooler intake pipe.












                                                        d. Remove the connection clamp between intercooler intake
                                                        hose and intercooler, remove the intercooler intake hose.

















                                                         EG-212
