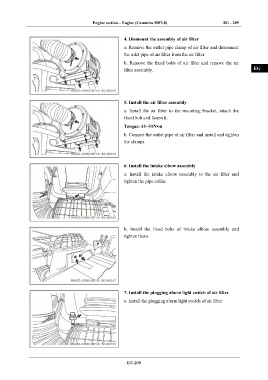

Engine section – Engine (Cummins ISF3.8)                  EG - 209

                                                                                                                  IN
                                                        4. Dismount the assembly of air filter

                                                        a. Remove the outlet pipe clamp of air filter and disconnect
                                                                                                                  DI
                                                        the inlet pipe of air filter from the air filter.

                                                        b.  Remove  the  fixed  bolts  of  air  filter  and  remove  the  air
                                                                                                                  EG
                                                        filter assembly.


                                                                                                                  TR

                                                        5. Install the air filter assembly                        AX

                                                        a.  Install  the  air  filter  to  the  mounting  bracket,  attach  the
                                                        fixed bolt and fasten it.                                 FR
                                                        Torque: 41~51N•m

                                                        b. Connect the outlet pipe of air filter and install and tighten   ST
                                                        the clamps.
                                                                                                                  BR


                                                        6. Install the intake elbow assembly                      BW

                                                        a.  Install  the  intake  elbow  assembly  to  the  air  filter  and
                                                        tighten the pipe collar.
                                                                                                                  EL








                                                        b.  Install  the  fixed  bolts  of  intake  elbow  assembly  and
                                                        tighten them.







                                                        7. Install the plugging alarm light switch of air filter

                                                        a. Install the plugging alarm light switch of air filter









                                                         EG-209
