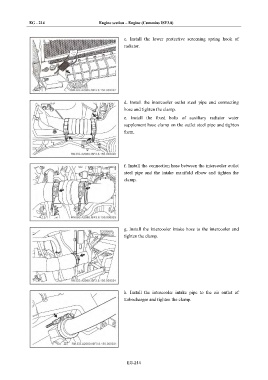

EG - 214                       Engine section – Engine (Cummins ISF3.8)


                                                        c.  Install  the  lower  protective  screening  spring  hook  of
                                                        radiator.












                                                        d.  Install  the  intercooler  outlet  steel  pipe  and  connecting
                                                        hose and tighten the clamp.
                                                        e.  Install  the  fixed  bolts  of  auxiliary  radiator  water
                                                        supplement hose clamp on the outlet steel pipe and tighten
                                                        them.





                                                        f. Install the connection hose between the intercooler outlet
                                                        steel  pipe  and  the  intake  manifold  elbow  and  tighten  the
                                                        clamp.










                                                        g. Install the intercooler intake hose to the intercooler and
                                                        tighten the clamp.











                                                        h.  Install  the  intercooler  intake  pipe  to  the  air  outlet  of
                                                        turbocharger and tighten the clamp.













                                                         EG-214
