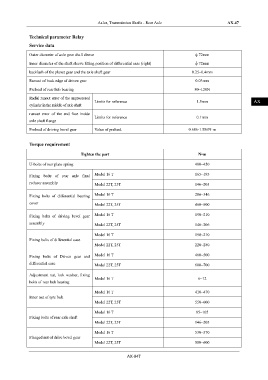

Axles, Transmission Shafts - Rear Axle AX-47

Technical parameter Relay IN

Service data
DI
Outer diameter of axle gear shaft sleeve ɸ 72mm

Inner diameter of the shaft sleeve fitting position of differential case (right) ɸ 72mm
EG
backlash of the planet gear and the axle shaft gear 0.25~0.4mm

Runout of back edge of driven gear 0.03mm
TR
Preload of rear hub bearing 80~120N

Radial runout error of the unprocessed
Limits for reference 1.5mm AX
cylinder in the middle of axle shaft

runout error of the end face inside
Limits for reference 0.1mm FR
axle shaft flange

Preload of driving bevel gear Value of preload 0.686-1.586N·m
ST

Torque requirement

Tighten the part N•m BR

U-bolts of rear plate spring 400~450
BW
Fixing bolts of rear axle final Model 16 T 165~195
reducer assembly Model 22T, 25T 146~205 EL

Model 16 T 286~346
Fixing bolts of differential bearing
cover Model 22T, 25T 460~500

Fixing bolts of driving bevel gear Model 16 T 190~210
assembly
Model 22T, 25T 146~206

Model 16 T 190~210
Fixing bolts of differential case

Model 22T, 25T 220~280

Model 16 T 460~500
Fixing bolts of Driven gear and

differential case
Model 22T, 25T 600~700

Adjustment nut, lock washer, fixing
Model 16 T 6~12
bolts of rear hub bearing

Model 16 T 410~470
Inner nut of tyre bolt
Model 22T, 25T 550~600

Model 16 T 85~105
Fixing bolts of rear axle shaft
Model 22T, 25T 146~205

Model 16 T 530~570

Flanged nut of drive bevel gear
Model 22T, 25T 500~600

AX-047
