AX-46 Axles, Transmission Shafts - Rear Axle

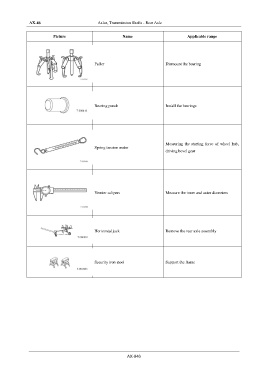

Picture Name Applicable range

Puller Dismount the bearing

Bearing punch Install the bearings

Measuring the starting force of wheel hub,
Spring tension meter
driving bevel gear

Vernier calipers Measure the inner and outer diameters

Horizontal jack Remove the rear axle assembly

Security iron stool Support the frame

AX-046
