Page 1161 - Foton Workshop Manual - Tunland (AT)
P. 1161
VEHICLE MAINTENNANCE - CHECK 05-21

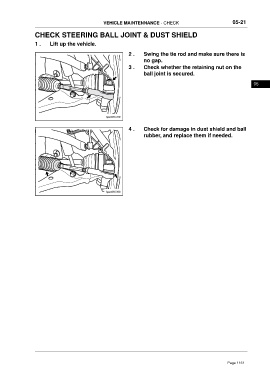

CHECK STEERING BALL JOINT & DUST SHIELD
1 . Lift up the vehicle.
2 . Swing the tie rod and make sure there is
no gap.
3 . Check whether the retaining nut on the
ball joint is secured.
05
4 . Check for damage in dust shield and ball
rubber, and replace them if needed.
Page 1161
