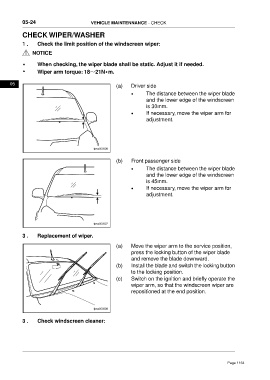

05-24 VEHICLE MAINTENNANCE - CHECK

CHECK WIPER/WASHER

1 . Check the limit position of the windscreen wiper:
NOTICE

• When checking, the wiper blade shall be static. Adjust it if needed.
• Wiper arm torque: 18～21N•m.

05
(a) Driver side
• The distance between the wiper blade
and the lower edge of the windscreen
is 30mm.
• If necessary, move the wiper arm for
adjustment.

(b) Front passenger side
• The distance between the wiper blade
and the lower edge of the windscreen
is 45mm.
• If necessary, move the wiper arm for
adjustment.

3 . Replacement of wiper.

(a) Move the wiper arm to the service position,
press the locking button of the wiper blade
and remove the blade downward.
(b) Install the blade and switch the locking button
to the locking position.
(c) Switch on the ignition and briefly operate the
wiper arm, so that the windscreen wiper are
repositioned at the end position.

3 . Check windscreen cleaner:
