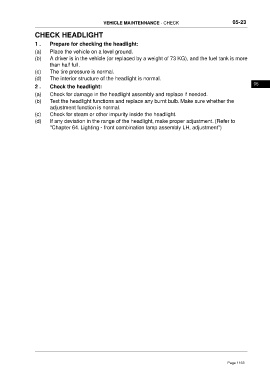

VEHICLE MAINTENNANCE - CHECK 05-23

CHECK HEADLIGHT

1 . Prepare for checking the headlight:
(a) Place the vehicle on a level ground.
(b) A driver is in the vehicle (or replaced by a weight of 73 KG), and the fuel tank is more
than half full.
(c) The tire pressure is normal.
(d) The interior structure of the headlight is normal.
05
2 . Check the headlight:
(a) Check for damage in the headlight assembly and replace if needed.
(b) Test the headlight functions and replace any burnt bulb. Make sure whether the
adjustment function is normal.
(c) Check for steam or other impurity inside the headlight.
(d) If any deviation in the range of the headlight, make proper adjustment. (Refer to
"Chapter 64. Lighting - front combination lamp assembly LH, adjustment")
