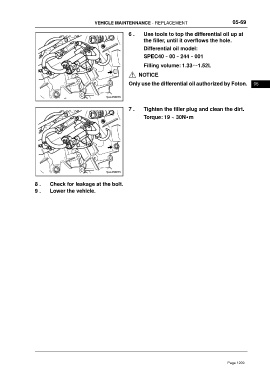

P. 1209
VEHICLE MAINTENNANCE - REPLACEMENT 05-69
6 . Use tools to top the differential oil up at
the filler, until it overflows the hole.
Differential oil model:
SPEC40–00–244–001
Filling volume: 1.33～1.52L
NOTICE
Only use the differential oil authorized by Foton. 05
7 . Tighten the filler plug and clean the dirt.
Torque: 19 ~ 30N•m
8 . Check for leakage at the bolt.
9 . Lower the vehicle.
