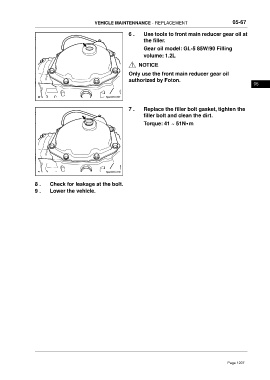

Page 1207 - Foton Workshop Manual - Tunland (AT)
P. 1207
VEHICLE MAINTENNANCE - REPLACEMENT 05-67
6 . Use tools to front main reducer gear oil at
the filler.
Gear oil model: GL-5 85W/90 Filling
volume: 1.2L
NOTICE
Only use the front main reducer gear oil
authorized by Foton.
05
7 . Replace the filler bolt gasket, tighten the
filler bolt and clean the dirt.
Torque: 41 ~ 51N•m
8 . Check for leakage at the bolt.
9 . Lower the vehicle.
Page 1207
