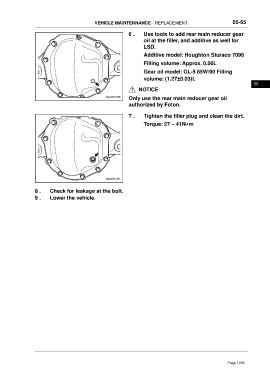

VEHICLE MAINTENNANCE - REPLACEMENT 05-65
6 . Use tools to add rear main reducer gear
oil at the filler, and additive as well for
LSD.
Additive model: Houghton Sturaco 7098
Filling volume: Approx. 0.06L
Gear oil model: GL-5 85W/90 Filling
volume: (1.27±0.03)L
05
NOTICE
Only use the rear main reducer gear oil
authorized by Foton.
7 . Tighten the filler plug and clean the dirt.
Torque: 27 ~ 41N•m
8 . Check for leakage at the bolt.
9 . Lower the vehicle.
