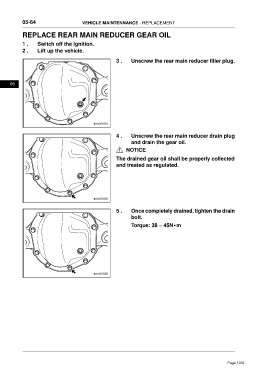

05-64 VEHICLE MAINTENNANCE - REPLACEMENT
REPLACE REAR MAIN REDUCER GEAR OIL
1 . Switch off the ignition.
2 . Lift up the vehicle.
3 . Unscrew the rear main reducer filler plug.
05
4 . Unscrew the rear main reducer drain plug
and drain the gear oil.
NOTICE
The drained gear oil shall be properly collected
and treated as regulated.
5 . Once completely drained, tighten the drain
bolt.
Torque: 38 ~ 45N•m
