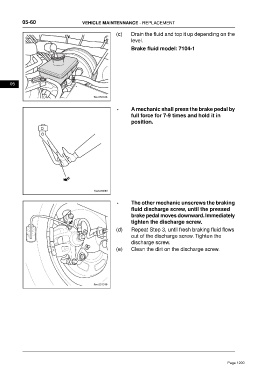

Page 1200 - Foton Workshop Manual - Tunland (AT)
P. 1200
05-60 VEHICLE MAINTENNANCE - REPLACEMENT
(c) Drain the fluid and top it up depending on the
level.
Brake fluid model: 7104-1
05
• A mechanic shall press the brake pedal by
full force for 7-9 times and hold it in
position.
• The other mechanic unscrews the braking
fluid discharge screw, until the pressed
brake pedal moves downward. Immediately
tighten the discharge screw.
(d) Repeat Step 3, until fresh braking fluid flows
out of the discharge screw. Tighten the
discharge screw.
(e) Clean the dirt on the discharge screw.
