P. 1195

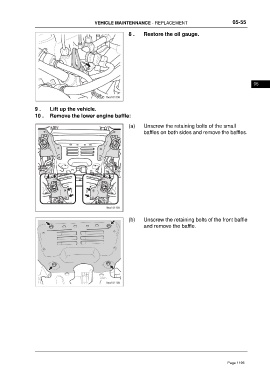

VEHICLE MAINTENNANCE - REPLACEMENT                             05-55

                                                           8 .    Restore the oil gauge.












                                                                                                                     05





                 9 .    Lift up the vehicle.
                 10 .   Remove the lower engine baffle:

                                                           (a)    Unscrew the retaining bolts of the small
                                                                  baffles on both sides and remove the baffles.























                                                           (b)    Unscrew the retaining bolts of the front baffle
                                                                  and remove the baffle.
