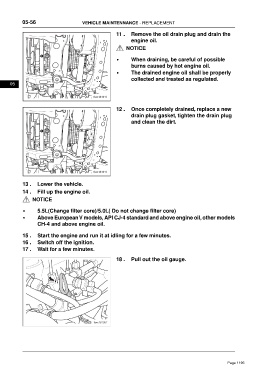

P. 1196
05-56 VEHICLE MAINTENNANCE - REPLACEMENT
11 . Remove the oil drain plug and drain the
engine oil.
NOTICE
• When draining, be careful of possible
burns caused by hot engine oil.
• The drained engine oil shall be properly
collected and treated as regulated.
05
12 . Once completely drained, replace a new
drain plug gasket, tighten the drain plug
and clean the dirt.
13 . Lower the vehicle.
14 . Fill up the engine oil.
NOTICE
• 5.5L(Change filter core)/5.0L( Do not change filter core)
• Above European V models, API CJ-4 standard and above engine oil, other models
CH-4 and above engine oil.
15 . Start the engine and run it at idling for a few minutes.
16 . Switch off the ignition.
17 . Wait for a few minutes.
18 . Pull out the oil gauge.
