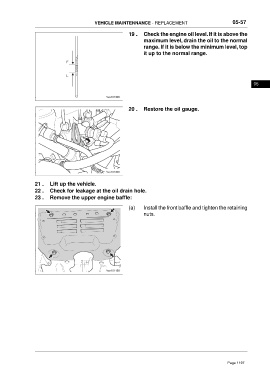

VEHICLE MAINTENNANCE - REPLACEMENT 05-57
19 . Check the engine oil level. If it is above the
maximum level, drain the oil to the normal
range. If it is below the minimum level, top
it up to the normal range.
05
20 . Restore the oil gauge.
21 . Lift up the vehicle.
22 . Check for leakage at the oil drain hole.
23 . Remove the upper engine baffle:
(a) Install the front baffle and tighten the retaining
nuts.
