05-66 VEHICLE MAINTENNANCE - REPLACEMENT

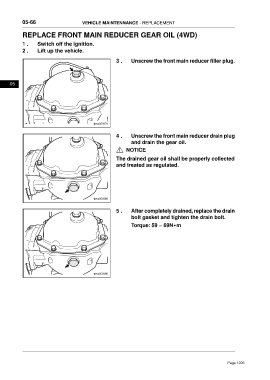

REPLACE FRONT MAIN REDUCER GEAR OIL (4WD)

1 . Switch off the ignition.
2 . Lift up the vehicle.

3 . Unscrew the front main reducer filler plug.

05

4 . Unscrew the front main reducer drain plug
and drain the gear oil.
NOTICE
The drained gear oil shall be properly collected
and treated as regulated.

5 . After completely drained, replace the drain
bolt gasket and tighten the drain bolt.
Torque: 59 ~ 69N•m
