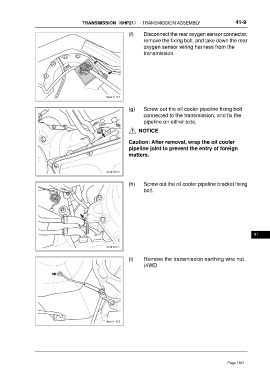

TRANSMISSION（6HP21） - TRANSMISSION ASSEMBLY 41-9
(f) Disconnect the rear oxygen sensor connector,
remove the fixing bolt, and take down the rear
oxygen sensor wiring harness from the
transmission.
(g) Screw out the oil cooler pipeline fixing bolt
connected to the transmission, and fix the
pipeline on either side.
NOTICE
Caution: After removal, wrap the oil cooler
pipeline joint to prevent the entry of foreign
matters.
(h) Screw out the oil cooler pipeline bracket fixing
bolt.
41
(i) Remove the transmission earthing wire nut.
(4WD
